What size garden is the Mule 561 QG-V20 designed for?
With 36 kg, 173 cc 4-stroke engine and a maximum working width of 60 cm, it is aimed at medium-sized family gardens and small plots of land where good performance is sought without switching to a motocultor. It also allows you to disassemble 2 groups of cutters to reduce the width to 4 cutters if it is necessary to work between narrower lines.
What advantages does the 4T OHV engine have over a 2-stroke engine?
The 4-stroke engine with overhead valves offers a more stable idle at lower revolutions, lower noise and more efficient consumption (0.315 kg/kWh) than a 2T equivalent. In addition, it uses unmixed gasoline, which simplifies starting and reduces emissions.
What oil does the engine need and how much can fit in the crankcase?
The engine uses 10W-40 oil and the crankcase capacity is 0.6 liters. It is advisable to check the level before each use and respect the change intervals indicated in the manual to maintain correct lubrication and prolong the life of the engine.

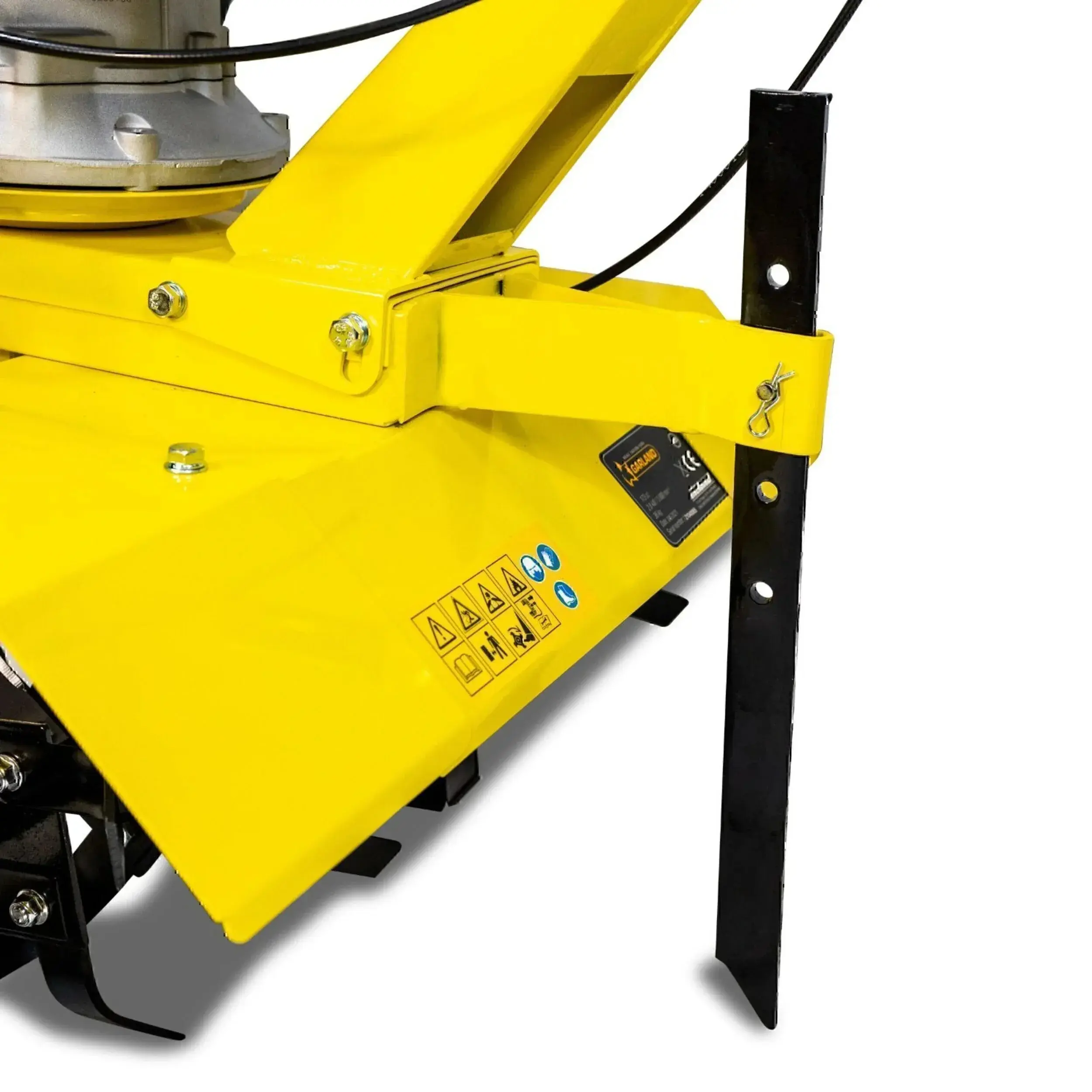

What function do the plant protection discs and the adjustable draft have?
The plant protection discs limit the entry of strawberries to the sides, avoiding damaging adjacent crops when passing between lines. The draft, adjustable in 4 heights, allows the plowing depth and working inclination to be adjusted according to the type of terrain and the height of the operator.

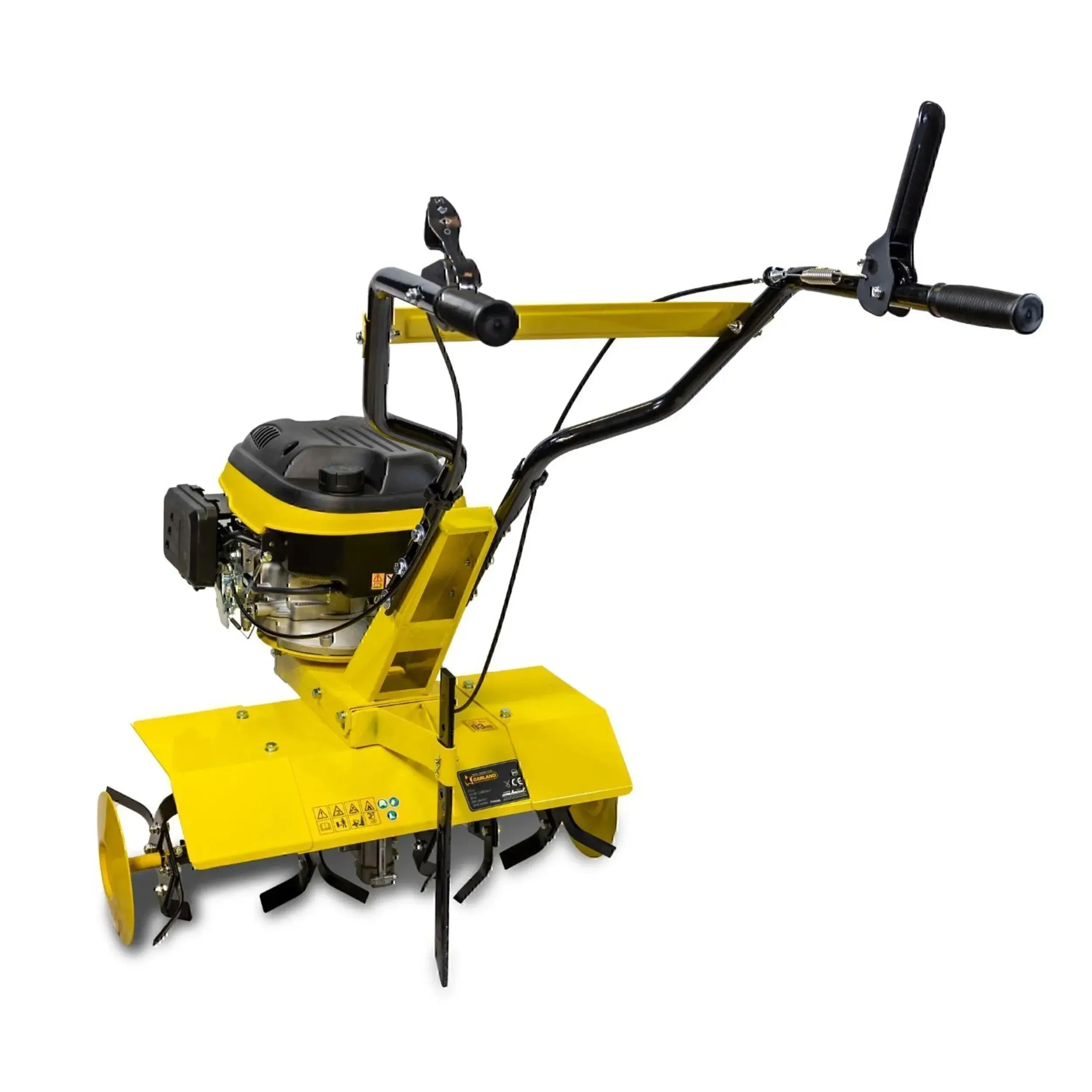

What is the transmission like and how reliable is it?
It has direct belt and cardan transmission with belt tensioner clutch, a robust configuration and easy maintenance. The belt also acts as a protection element against specific overloads of the rotor.

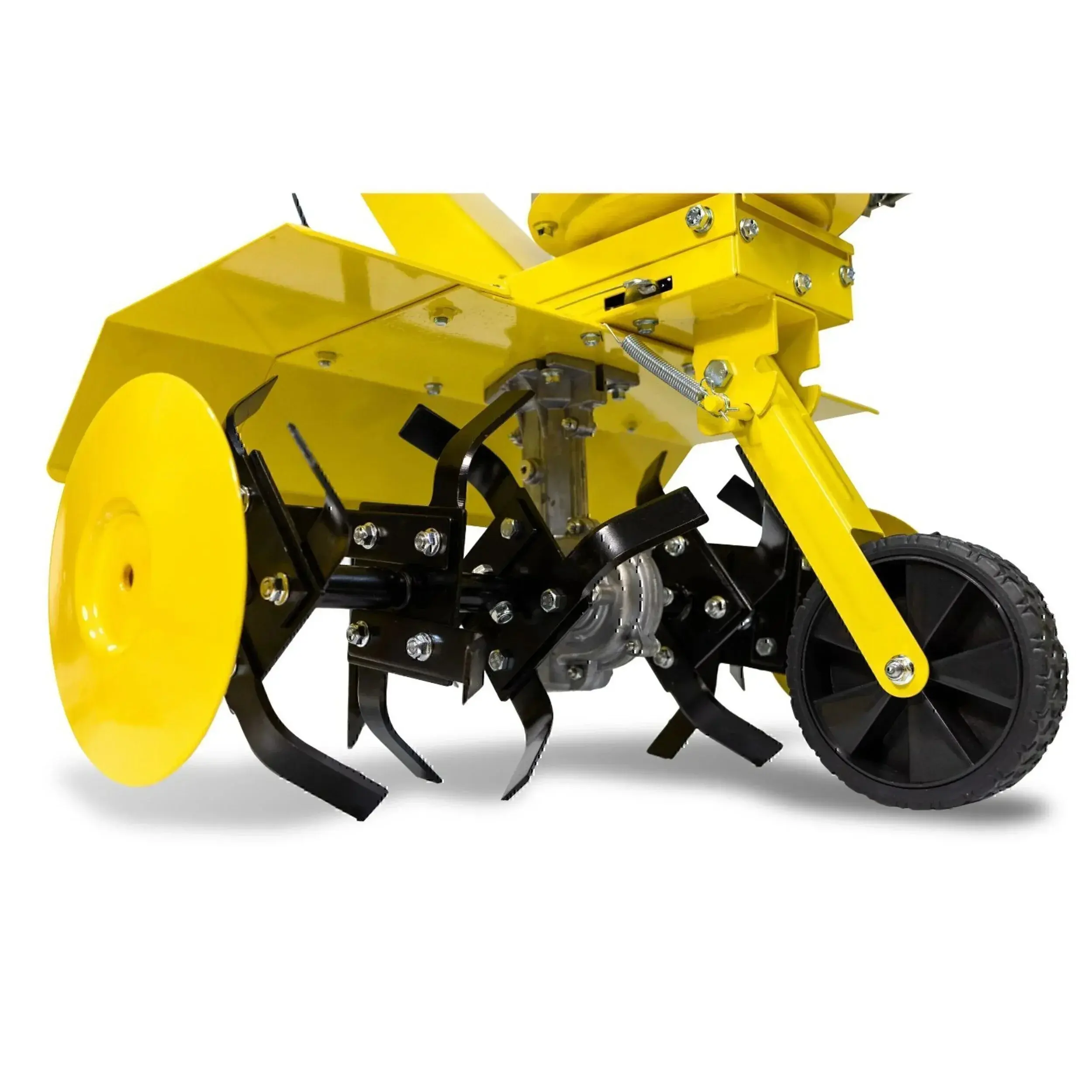

Can you move around the property easily?
Yes. Although it weighs 36 kg, it incorporates a retractable transport wheel that is lowered to be moved by rolling and removed when starting work. The handlebar is fixed and wider, which improves stability when guiding the machine during work.
